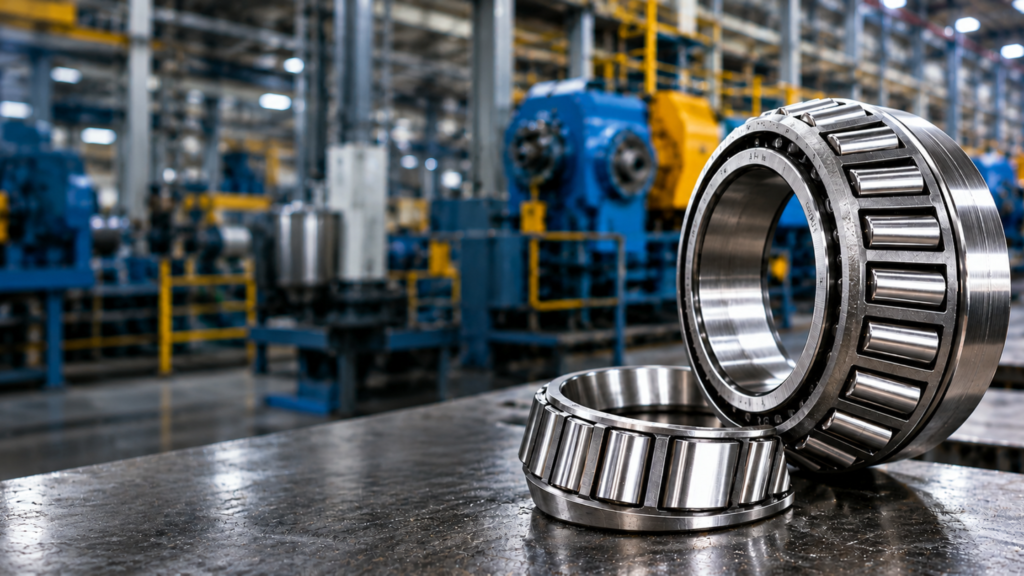

Introduction
Industrial equipment across sectors, machine tool spindles, wind turbine gearboxes, high-speed rail axles, automotive transmissions, has been pushed toward higher operating speeds for a straightforward reason: throughput and power density both improve when a given machine can run faster without a corresponding increase in size or mass. That push has real consequences for bearing selection, because a taper roller bearing operating comfortably within its design envelope at moderate speed can behave very differently once speed climbs into a range where centrifugal loading on the rollers, cage dynamics, and lubrication film behavior all start interacting in ways a low-speed application never exposes.
Sourcing taper roller bearings India-manufactured product for these higher-speed applications has become considerably more viable over the past several years, as domestic manufacturing capability has moved into precision grades and design features that were, not that long ago, available almost exclusively from a small number of established international suppliers. Understanding why taper roller bearings specifically support this shift, and what design and manufacturing factors actually determine whether a given bearing performs reliably at elevated speed, matters directly for engineers specifying bearings against equipment that’s being pushed harder than the previous generation of the same machine class.
Why Taper Roller Geometry Suits High-Load, Combined-Load Applications
Taper roller bearings handle combined radial and axial loading in a single component, a capability that ball bearings and cylindrical roller bearings each only partially replicate without pairing multiple bearing types together. The tapered roller and raceway geometry means load is transmitted along a line contact rather than a point contact, distributing load over a larger contact area and allowing the bearing to carry substantially higher loads for a given envelope size than an equivalent ball bearing arrangement would support. This load capacity advantage is exactly what makes taper roller bearings the default choice in gearboxes, differentials, and spindle applications where both radial load from the shaft and axial thrust from gear meshing or cutting forces need to be carried by the same bearing position.
As equipment speed increases, though, this same geometry introduces design challenges that don’t show up at lower speed, because the line contact and the roller’s interaction with the guide flange on the cone become more sensitive to lubrication regime and thermal behavior as rotational speed climbs.
Speed Limits and the DN Value Constraint
Bearing speed capability is traditionally expressed through a DN value, bore diameter in millimeters multiplied by rotational speed in RPM, and taper roller bearings have historically carried lower DN limits than deep groove ball bearings of comparable size, a limitation rooted in the sliding friction that occurs at the roller-to-flange contact on the cone, a contact that ball bearings simply don’t have. Pushing taper roller bearings into higher-speed applications has required design work specifically targeting this flange contact, since it’s the component generating the most heat and wear at elevated speed and the one that ultimately limits how far a given bearing design can be pushed before thermal and wear failure become a real risk rather than a theoretical one.
Modern high-speed taper roller designs address this through optimized flange geometry and surface finish that reduce sliding friction at the contact, combined with cage designs that better control roller skew and reduce the sliding component of roller motion relative to pure rolling, both changes that directly raise the achievable DN value compared to a standard-design bearing of the same nominal size.
Cage Design and Roller Guidance at Elevated Speed
Cage design becomes disproportionately important as speed increases, because the cage is responsible for maintaining even roller spacing and controlling roller skew, and at low speed a cage design flaw that allows minor roller misalignment simply doesn’t generate enough centrifugal or dynamic force to matter. At high speed, that same misalignment gets amplified, driving uneven load distribution across rollers, localized heat generation, and accelerated fatigue at the affected rollers specifically rather than distributed evenly across the full roller complement as the bearing design intends.
Machined brass or steel cages, offering tighter pocket tolerance and better dimensional stability under thermal load than stamped steel cages, have become the standard specification for high-speed taper roller applications, since stamped cage designs, adequate and cost-effective for general industrial service, don’t hold the pocket tolerance needed to control roller guidance precisely enough once speed climbs into the range where skew-induced heat generation becomes a meaningful failure driver.
Lubrication Regime and Thermal Management
Lubrication behavior changes fundamentally as bearing speed increases, moving from a regime where lubricant film thickness is relatively easy to maintain at low speed toward a regime where elastohydrodynamic film formation becomes sensitive to viscosity, oil supply rate, and heat removal in ways that a general-purpose grease lubrication approach, fine at moderate speed, often can’t support reliably. High-speed taper roller applications increasingly specify oil lubrication, either jet lubrication directed precisely at the roller-flange contact or, for the highest-speed applications, oil-air mist lubrication that delivers a controlled minimal oil quantity precisely where needed while minimizing the churning losses that flood lubrication generates at high rotational speed.
Heat generated at the roller-flange contact and within the rolling contact itself has to be removed at a rate matching generation, or bearing temperature climbs, lubricant viscosity drops, film thickness thins further, and a feedback loop toward thermal failure develops that a bearing operating comfortably within a lower-speed thermal balance never experiences. Thermal growth of the bearing components themselves, and its effect on internal clearance and preload, becomes a design consideration at high speed in a way it simply isn’t at lower speed, where thermal growth is modest enough to fall well within the bearing’s design clearance tolerance without special accommodation.
Preload Control and Its Growing Importance at Speed
Taper roller bearings are typically set up in pairs with a specific preload or clearance setting that determines stiffness and, critically, how the internal geometry behaves under thermal expansion during operation. At low speed, a preload setting with some tolerance for error still delivers acceptable performance. At high speed, incorrect preload, whether too tight or too loose, has outsized consequences. Excessive preload generates additional heat at the roller-raceway contact that compounds the thermal challenges already present at high speed, while insufficient preload allows the internal geometry to shift under thermal growth in ways that can produce skidding, a condition where rollers slide rather than roll cleanly through part of their rotation, generating surface damage that shortens bearing life considerably.
Getting preload right for a high-speed application increasingly requires accounting for thermal growth during operation, not just the static cold setting, since a preload that’s correct at ambient assembly temperature can drift meaningfully once the bearing reaches its actual operating temperature under load, particularly in applications with substantial thermal cycling between startup and steady-state running.
Material and Heat Treatment Advances Supporting Higher Speed Capability
Bearing steel cleanliness, controlled through vacuum degassing and other refined melting processes, directly affects fatigue life by reducing the non-metallic inclusions that act as fatigue crack initiation sites under the high contact stresses present in rolling element bearings. Case-carburized bearing steels, offering a hard wear-resistant surface over a tougher core material, have become increasingly standard for high-speed taper roller applications specifically because the combination resists both the surface fatigue driven by rolling contact stress and the impact loading that can occur during transient events like startup or sudden load changes, a combination through-hardened steel handles less effectively at the higher stress and speed levels involved.
Precision Grade and Manufacturing Tolerance
ISO precision classes for taper roller bearings, ranging from standard tolerance through progressively tighter classes, directly affect how much dimensional variation exists across a batch of nominally identical bearings, and that variation matters more as speed increases because dimensional inconsistency translates into uneven load sharing and vibration that a lower-speed application tolerates without meaningful consequence. Manufacturing capability to hold tighter precision classes consistently, not just on an occasional sample batch but across full production volume, is one of the clearer indicators of whether a given source of taper roller bearings India-manufactured or otherwise is genuinely positioned for high-speed application work or still primarily oriented toward general industrial service where standard tolerance is entirely adequate.
What This Means for Equipment Designers
Specifying taper roller bearings for higher-speed equipment requires moving past a load-and-bore-size selection process alone and into a genuine evaluation of cage design, lubrication compatibility, preload management under thermal growth, and manufacturing precision, factors that a catalogue load rating doesn’t fully capture on its own. As domestic manufacturing capability in this category has matured, engineers evaluating supply increasingly find design and testing evidence available that simply wasn’t offered a decade ago, which changes the calculus for equipment designers who previously assumed high-speed bearing requirements meant looking exclusively toward a narrow band of established international suppliers.
Conclusion
The shift toward higher-speed industrial equipment has placed real design demands on taper roller bearings specifically, given the sliding friction and thermal behavior inherent in their roller-flange contact geometry, and meeting those demands has required genuine advances in cage design, lubrication strategy, preload management, and manufacturing precision rather than simply scaling up a standard-speed design. Equipment designers evaluating taper roller bearings India-sourced or otherwise for high-speed applications get a materially better outcome by evaluating suppliers against these specific technical factors rather than against load rating and bore size alone, since it’s exactly these secondary factors that determine whether a bearing performs reliably once speed moves well past what the equipment’s previous generation was designed around.
